PB110 / PB110E – Trench heater with an universal construction solution

  • PB 110 - made from a high quality stainless steel
  • PB 110E - made of galvanised steel sheet with internal black coating
  • high natural convection output
  • short response time

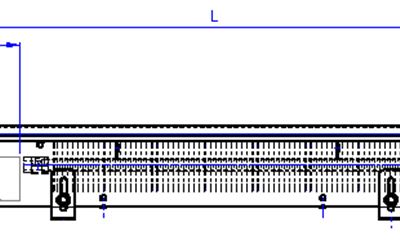

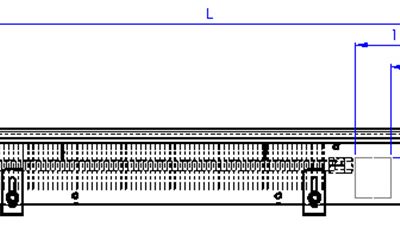

  • universal right-left design (supplied only in the right version, but allows conversion to the left)
  • the new design enables joining the convectors into any long joint
  • standard lengths: 900 / 1000 / 1250 / 1500 / 1750 / 2000 / 2250 / 2500 / 2750 / 3000 mm

Function

without a fan

heating

dry environment

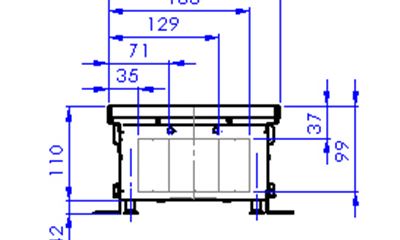

Dimensions

180 mm

110 mm

900 - 3000 mm

195  W/m
Inquire
Contact form
First name
Last name
E-mail
Phone
Message
By submitting you agree to the processing of personal data pursuant to Act No. 101/2000 Coll. on the Protection of Personal Data.
Submit form

Technical parameters

Input parameters for calculation

Length (mm)

Atypical length (mm)

Inlet water temperature

Outlet water temperature

Interior temperature (°C)

Output parameters

Q [W]
Performances
q [l/h]
Water flow
∆P [kPa]
Water pressure drop
V [l]
Heat exchanger water volume
Enter input parameters
The technical parameters are set according to the relevant standards. In fact, they may vary depending on the location of the convector, the cover grille, the connection type.
The technical parameters are set according to the relevant standards. In fact, they may vary depending on the location of the convector, the cover grille, the connection type.
The technical parameters are set according to the relevant standards. In fact, they may vary depending on the location of the convector, the cover grille, the connection type.
The technical parameters are set according to the relevant standards. In fact, they may vary depending on the location of the convector, the cover grille, the connection type.
The technical parameters are set according to the relevant standards. In fact, they may vary depending on the location of the convector, the cover grille, the connection type.
The technical parameters are set according to the relevant standards. In fact, they may vary depending on the location of the convector, the cover grille, the connection type.
The technical parameters are set according to the relevant standards. In fact, they may vary depending on the location of the convector, the cover grille, the connection type.
The technical parameters are set according to the relevant standards. In fact, they may vary depending on the location of the convector, the cover grille, the connection type.

Available grilles and accessories

Grille- aluminium

rolling - sparse

Grille- aluminium

segmented - sparse - high

Grille - wood

rolling - sparse

Grille - st. steel

rolling - sparse (must be ordered with the convector)

Frame

standard

Frame

covering

Grille - wood - transverse

shade: OAK

Grille - wood - transverse

shade: BEECH

Grille - wood - transverse

shade: MAPLE

Grille - aluminium - transverse

shade: SILVER

Grille - aluminium - transverse

shade: LIGHT BRONZE

Grille - aluminium - transverse

shade: DARK BRONZE

Grille - st. steel - transverse

shade: ST. STEEL
